Omega National Signature Craftsman Range Hood in Multiple Sizes, Wood Species, and Front Panel Option
With Straight Valence
** Shown with Optional Chimney (Not Included)
** Shown with Optional Chimney (Not Included)
With Arched Valence
** Shown with Optional Chimney (Not Included)
** Shown with Optional Chimney (Not Included)
Broan Silver Metallic Liner
Included with Range Hood
Included with Range Hood
 | Tips from an Expert - How to Choose the Right Range Hood for your Home |
Step 1: Choose Width, Wood Species, and Front Panel
Step 2: Select Optional Chimney: Click here
Step 3: Select a Ventilator Power Pack: Click Here
Features:
- Omega National Signature Craftsman Range Hood
- Available Options:
- Range Hood Width: 30'' Wide, 36'' Wide, 42'' Wide, 48'' Wide
- Wood Species: Alder, Cherry, Hickory, Maple, Red Oak, Rift White Oak
- Front Panel Valance Style: Straight, Arched
- Includes FREE! Broan Range Hood Silver Metallic Powder-Coated Liner for Use with Broan Power Packs (Sold Separately) Click Here
- Broan Liner Comes Standard with Purchase, but You Can Request a Sirius Liner as a Custom Order Call Customer Service for Quote at 1.800.667.8721
- Material: Made from Superior Solid Wood and Wood Veneer Plywood
- All Surfaces Sanded to 220 Grit; Ready to Finish
- Mounting Application: Wall Mounted
- Installs Easily Using Omega National Patent-Pending Standard French Cleat Hanging System
- Designed for Easy Installation with Removable, Matching, Trimmable Chimney (Sold Separately) Click Here
- Perfect for Today's Transitional / Contemporary Styling in the Kitchen
- Ducting Installation: Typically Vertical, though in Some Cases, Horizontal Installation is Possible, Depending on the Customer's Application; Elbows can be Used to Vent through the Side when Needed
- FREE Shipping via Truck to your curb. Looking for Offload Service or Inside Delivery? Click here to see more shipping options.
- All Applicable Installation Mounting Hardware Included
Note: A Distance of 24" - 30" from the Stove Top to the Wood is Recommended. The Larger Wall Mount Hood has a Recommendation of 30". Check Local Building Codes and Regulations for Final Determination.

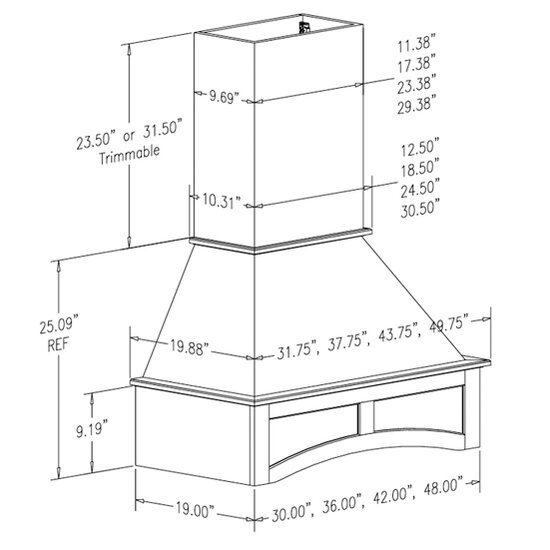

Dimensions:
(W = side to side) (D = front to back) (H = top to bottom)
Available Sizes for Arched Valance:
30" W x 19" D x 25-1/16" H
36" W x 19" D x 25-1/16" H
42" W x 19" D x 25-1/16" H
48" W x 19" D x 25-1/16" H
Available Sizes for Straight Valance:
30" W x 19" D x 22-7/8" H
36" W x 19" D x 22-7/8" H
42" W x 19" D x 22-7/8" H
48" W x 19" D x 22-7/8" H
Available Sizes for Arched Valance:
30" W x 19" D x 25-1/16" H
36" W x 19" D x 25-1/16" H
42" W x 19" D x 25-1/16" H
48" W x 19" D x 25-1/16" H
Available Sizes for Straight Valance:
30" W x 19" D x 22-7/8" H
36" W x 19" D x 22-7/8" H
42" W x 19" D x 22-7/8" H
48" W x 19" D x 22-7/8" H
Description:
The Signature Craftsman Range Hood by Omega National is a beautiful, practical addition to any kitchen that needs a touch of contemporary flare. This modern range hood is available in Red Oak, Maple, Hickory, Cherry, or Alder wood species, with either a straight or arched raised panel valance in 30", 36", 42", and 48" widths. The Signature Craftsman is designed for easy installation using a standard, patent pending French cleat hanging system. Each purchase includes a silver metallic powder coated liner, which accommodates all Broan ventilation offered by Omega National Products. A removable, matching chimney option is available, but sold separately. All installation hardware is included.
Additional Information:
 | Installation Instructions (PDF) |
| Straight Detailed Specifications (PDF) |
| Arched Detailed Specifications (PDF) |
| Broan Liner Detailed Specifications (PDF) |
| Sirius Liner Detailed Specifications (PDF) |
Optional Chimney and Additional Power Packs:
**Available with 250 -600 CFM
**5.0 - 9.0 Sones
**Hood is only Compatible with Broan or Omega Power Packs
**5.0 - 9.0 Sones
**Hood is only Compatible with Broan or Omega Power Packs
Product Reviews:
 | ... by: T Duff ✔Verified Buyer from: Plymouth, MI on: September 6, 2023 |
| Impressed with the quality and the cost was 1/2 the price of other quotes we received. |
|
Your questions that we answered:
 | What is the overall height of the hood? - Asked about product NA-R2836SMB1QUF1 | |
 | The dimensions of NA-R2836SMB1QUF1 are 36"W x 19-7/8"D x 25"H. |
|
| 0% of 0 people found this useful. Was this useful to you? Yes (0) | No (0) | ||
| Hi there, Is the trim on the bottom panel removable or can it be customized? I have a 36" wide space and unfortunately this hood wouldn't fit with the trim (37" wide). - Asked about product NA-R2836SMB1HUF1 | |
| The trim can be removed, however, it is made into the bottom of the vent hood. It would require more than easily removing from the side, as it is attached to the frame. |
|
| 0% of 0 people found this useful. Was this useful to you? Yes (0) | No (0) | ||
| Do you have to install a chimney? When you attach the hood to the wood cleat in the back how far down does it go on it. If need be can the molding not be put on that way a can put my own on to cover the gap, and what is the distance from the top of the hood to the top of the blower where my vent line will attach. I have only 7ft 7 in to my soffit where it turns 90 degrees in the soffit. - Asked about product NA-R2036SMB1MUF1 | |
| The chimney is not a required part for operation of the hood, you do not have to install a chimney. The recommended height of the vent hood is 30-36in above the cooktop, the exact height should be verified with local building codes. The bottom of the mounting plate should be 4-5/8in above the bottom of the hood vent. The height of the power pack would determine other measurements inside the vent hood. The trim is removable however, the trim that is above the valance is connected to the valance making this a functional piece of the vent hood. |
|
| 0% of 0 people found this useful. Was this useful to you? Yes (0) | No (0) | ||
| I'm interested in buying a range hood and like the look of the Omega National Signature Craftsman, but I'm totally confused as to what I would need to buy. In the end, I'm looking for a wall mount hood, wood that can be painted/stained to match the cabinets, 1,000 (or more) CFM power pack with lights, removable trays for easy cleaning, 30" width, approx. 22" - 24" depth, externally vented...not sure what else I'm missing (liner? chimney? other?). Do you have anything that has all of these features? Thanks! - Asked about product NA-R2830SMB1MUF1 | |
| If you want to go with a blower that has at least 1000 or more CFM you can use the Craftsman, but you will need to use a external blower. As it will not support a blower of that size. Omega has the Arch Signature Series hood that will support a Sirius 960 CFM Blower. Click here |
|
| 0% of 0 people found this useful. Was this useful to you? Yes (0) | No (0) | ||
| What additional parts would need to be purchased with this range hood? Does it come with a liner/insert? Thanks, Kelly - Asked about product NA-R2036SMB1MUF1 | |
| Item NA-R2036SMB1MUF1 does include the wood hood and liner. You would need to select a chimney (if you desire), a power pack and a recirculation kit if you wanted to make the hood ductless. On the top of the page we do have steps #1-4 listed to help:
Step 1: Choose Wood Species, Width & Front Panel Step 2: Select Optional Chimney: Click here Step 3: Select a Ventilator Power Pack: Click here Step 4: Select an optional re-circulating ductwork kit if not venting outside: Click here |
|
| 0% of 0 people found this useful. Was this useful to you? Yes (0) | No (0) | ||
