Tresco by Rev-A-Shelf 12/24VDC 60W/96W Round LED Recess or Surface Mount Controllers for Single Color Dimmable Low Voltage Lights

View all from Tresco by Rev-A-Shelf

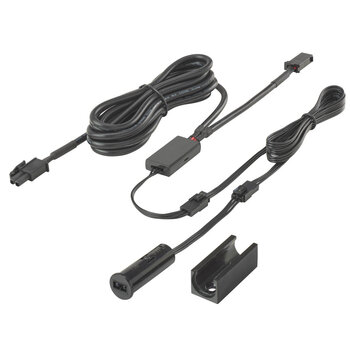

TR-L-RSDS-BL-1: 12 / 24VDC 60W/96W Round Single Door Sensor, Black

TR-L-RSDS-BL-1
TR-L-RSDS-BL-1

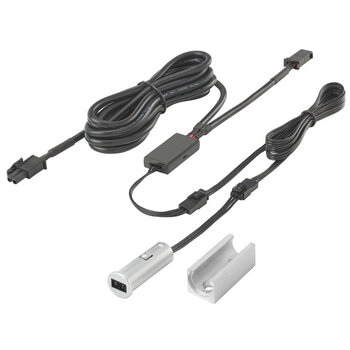

TR-L-RSDS-NI-1: 12 / 24VDC 60W/96W Round Single Door Sensor, Nickel

TR-L-RSDS-NI-1
TR-L-RSDS-NI-1

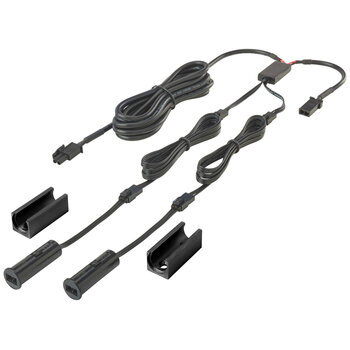

TR-L-RSDS2-BL-1: 12 / 24VDC 60W/96W Round Two Door Sensor, Black

TR-L-RSDS2-BL-1
TR-L-RSDS2-BL-1

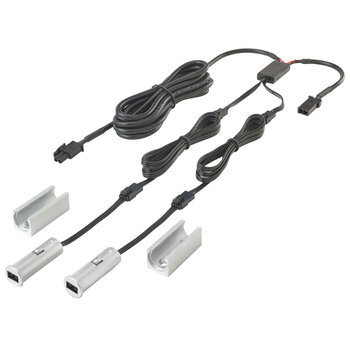

TR-L-RSDS2-NI-1: 12 / 24VDC 60W/96W Round Two Door Sensor, Nickel

TR-L-RSDS2-NI-1
TR-L-RSDS2-NI-1

TR-L-RSDIM-NI-1: 12 / 24VDC 60W/96W Round Touch Dimmer, Nickel

TR-L-RSDIM-NI-1
TR-L-RSDIM-NI-1

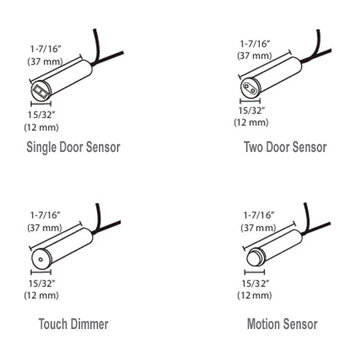

Dimensions
Dimensions

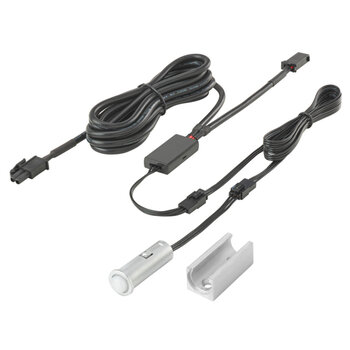

Tresco by Rev-A-Shelf 12/24VDC 60W/96W Round Motion Sensor, Nickel

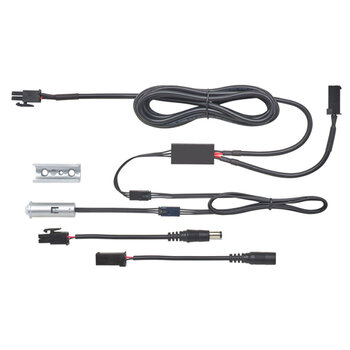

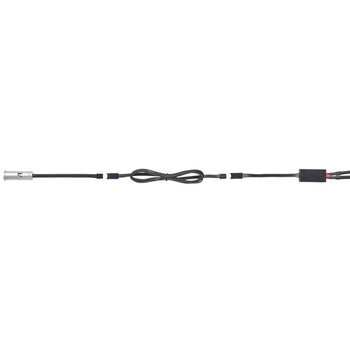

Motion Sensor Product View, Nickel

Motion Sensor Overhead View, Nickel

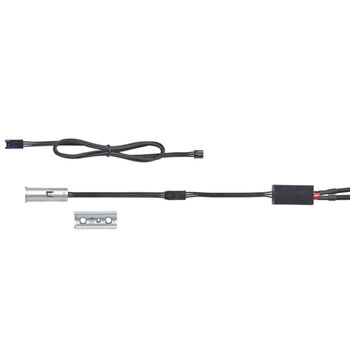

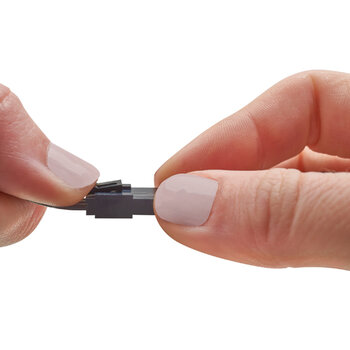

Motion Sensor Linking View, Nickel

Motion Sensor Close Up View, Nickel

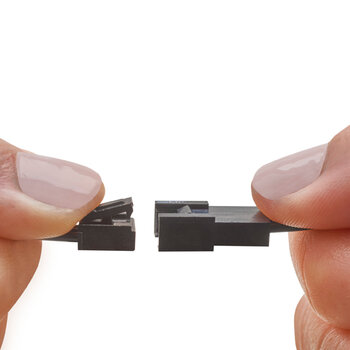

Motion Sensor Release Linking View, Nickel

Lifetime Guarantee

Features:

Tresco by Rev-A-Shelf Round LED Recess/Surface Mount Controllers
Controls all Tresco® single color dimmable low voltage lights
Available Options:
- Controller Type: Single Door Sensor, Two Door Sensor, Touch Dimmer, Motion Sensor
- Finish: Nickel, Black
Max Wattage: 12VDC/60W; 24VDC/96W
79” (2 m) input cord and 6” (152 mm) output cord attached
Recess or surface mount with included surface mount clip
Single or Multi Door Sensor, Motion Sensor, & Touch Dimmer Controllers available
Improved smaller design allows controllers to be easily recessed using a 1/2” (13 mm) drill bit
The addition of small connectors allow for wire shortening and easier wire management during install
Black or nickel finishes
Surface mount plate packaged with each controller
Can mount inside cabinet or drill hole and have top sticking out for motion

Single Door Sensor:
Door Open - Light On
Door Closed - Light Off
Sensor Range: 1/16” - 2” (2 mm - 50 mm)

Two Door Sensor:
Either Door Open - Light On
Both Door Closed - Light Off
Sensor Range: 1/16” - 2” (2 mm - 50 mm)

Touch Dimmer:
Touch on/off
0-100% dimming control
Hold finger down for dimming
Touch dimmer once to turn on/off
Power failure memory (retains last setting)

Motion Sensorr:
Touch on/off when human motion is detected
Sensor range: 0" - 118" (0mm - 3000mm)
Viewing degree: 120°
Time on: 30 seconds if no motion

Dimensions:

(W = side to side) (D = front to back) (H = top to bottom)

Specifications

Description:

These Tresco by Rev-A-Shelf 12/24VDC 60W/96W Round LED Recess/Surface Mount Controllers are available in nickel or black finishes. The controllers are the perfect accessory for any LED light, ensuring you can control the lights in your room however you want to. With a new standard 1/2” (13 mm) diameter, shorter length and easy simple connect connectors for easy wiring, Round Controllers are available in a single door, two door, touch dimmer and motion sensor versions, black or nickel finishes and can control all Tresco 12/24VDC single color lights, you are sure to find the best fit for your home.

Additional Information:
