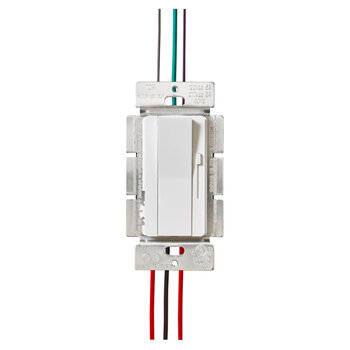

Tresco by Rev-A-Shelf Commercial Series 0-10V Deco Wall Dimmer 120-277V, Indoor Use Only

(W = side to side) (D = front to back) (H = top to bottom)

Overall Dimensions: 2-1/16" W x 1-13/16" D x 4-2/16" H
Dimmer Overall Dimensions: 2" W x 2" D x 13/32" H

The Tresco by Rev-A-Shelf Commercial Series 0-10V Deco Wall Dimmer is a versatile and sophisticated solution for controlling your LED lighting systems. Designed to provide precise 0-10V dimming functionality, this single gang wall dimmer is compatible with Commercial Hardwire 0-10V Power Supplies, which are sold separately. One of the key features of this dimmer is its Device Switch Rating. It can handle 120VAC at 50/60Hz with a maximum current of 6AMPs and 277VAC at 50/60Hz with a maximum current of 3AMPs. This robust rating ensures reliable performance in various commercial settings. The Tresco Deco Wall Dimmer operates effectively within a temperature range of 32°F to 104°F (0°C to 40°C), making it suitable for a wide range of indoor applications. It offers a Sensitivity Knob, allowing installers to customize the minimum and maximum light levels to meet specific customer preferences for different lighting scenarios. This dimmer's capabilities are impressive, as it can control either (2) 300W 12VDC 0-10V power supplies or (1) 384W 24VDC 0-10V power supply with a single dimmer. Its wide paddle ON/OFF switch and separate slide control are compatible with standard Deco-style switch plates (not included, customer supplies own). Additionally, the Tresco Deco Wall Dimmer is designed for both single pole and 3-way wiring applications, providing flexibility in installation. It's intended for wall mounting and is suitable for indoor use only. As a safety precaution, it is strongly recommended that all wiring be carried out by qualified, licensed electricians. Please note that the switch ratings mentioned are specifically for loads connected to the ON/OFF function of the switch. The dimming functionality via the 0-10V slider is subject to compliance with local NEC (National Electrical Code) standards or the electrical run design.
