Tresco by Rev-A-Shelf Infinex Extrusion LED Lighting System, 72" (1.83m)

Name: Tresco by Rev-A-Shelf Infinex Extrusion LED Lighting System, 72'' (1.83m)
Brand: Tresco by Rev-A-Shelf
Rating: 5 (1 reviews)

View all from Tresco by Rev-A-Shelf

(1)

Tresco by Rev-A-Shelf Infinex Aluminum Extrusion

Round Extrusion Used Under Sink

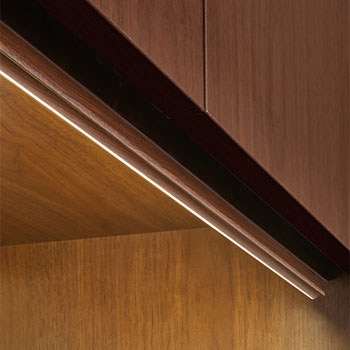

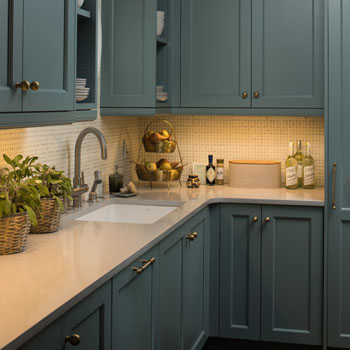

Round Extrusion Used Under Cabinets

Flush Extrusion Used in Shelves, Lights On

Flush Extrusion Used in Shelves, Lights Off

Recessed Extrusion Used in Closet, Warm Light

Recessed Extrusion Used in Closet, Cool Light

Recessed Extrusion Used in Closet Close-up, Warm Light

Recessed Extrusion Used in Closet Close-up, Cool Light

Satin Curved Extrusion

Black Curved Extrusion

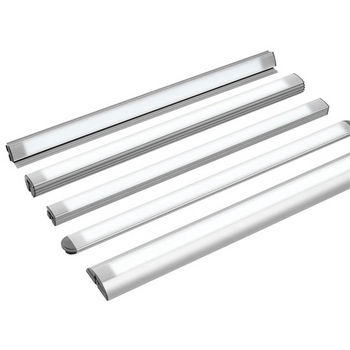

Tresco by Rev-A-Shelf Infinex Extrusion LED Lighting System

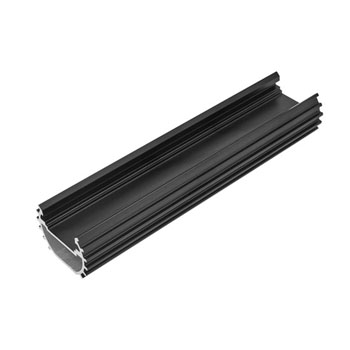

Black Round Extrusion

Cherry Extrusion

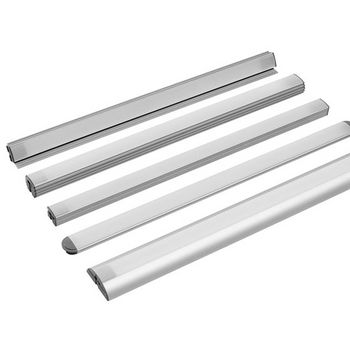

Examples of Extrusions
Lights, Diffusers & End Caps Sold Separately

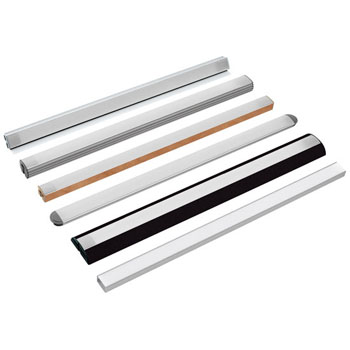

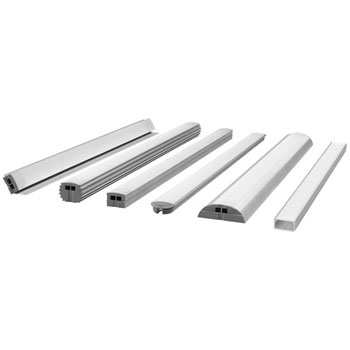

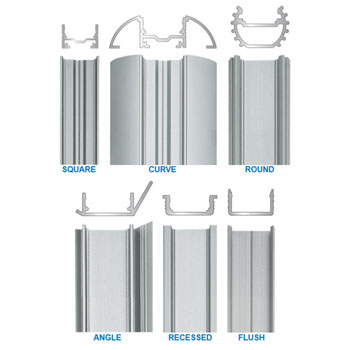

Types of Extrusions
End Caps Sold Separately

Satin Nickel Lights on w/ Extrusion
Lights, Diffusers & End Caps Sold Separately

Satin Nickel Lights off w/ Extrusion
Lights, Diffusers & End Caps Sold Separately

Satin Nickel End Views
Lights, Diffusers & End Caps Sold Separately

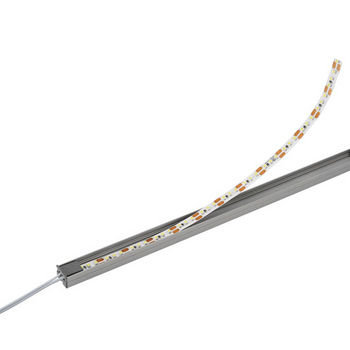

Satin Nickel With Tape
With FlexTape, Sold Separately

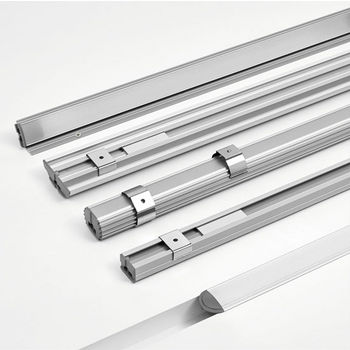

Satin Nickel With Clips
Lights, Clips & End Caps Sold Separately

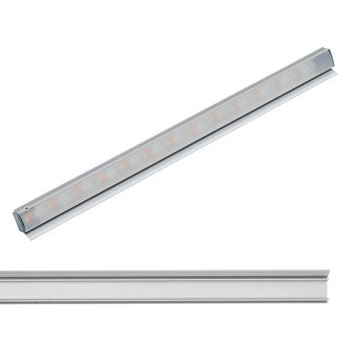

Satin Nickel Angled
Lights, Diffusers & End Caps Sold Separately

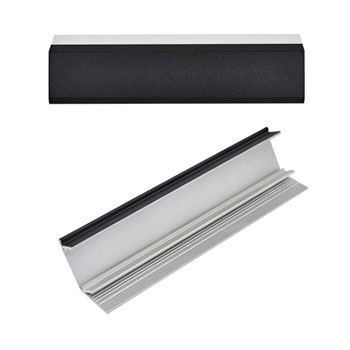

Black Angled

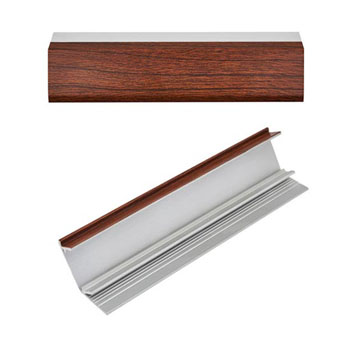

Dark Cherry Angled

Maple Angled

White Angled

Satin Nickel Curved
Lights, Diffusers & End Caps Sold Separately

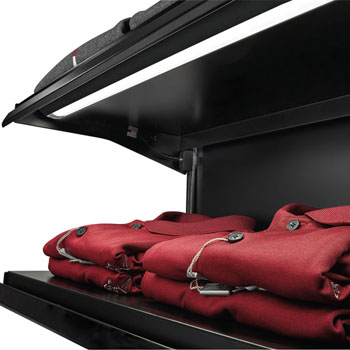

Black Curved
Lights, Diffusers & End Caps Sold Separately

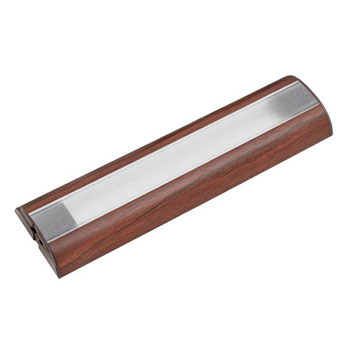

Dark Cherry Curved
Lights, Diffusers & End Caps Sold Separately

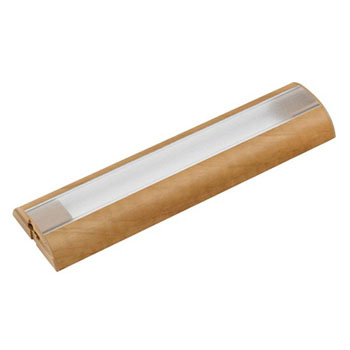

Maple Curved
Lights, Diffusers & End Caps Sold Separately

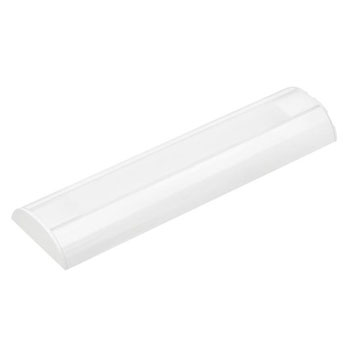

White Curved
Lights, Diffusers & End Caps Sold Separately

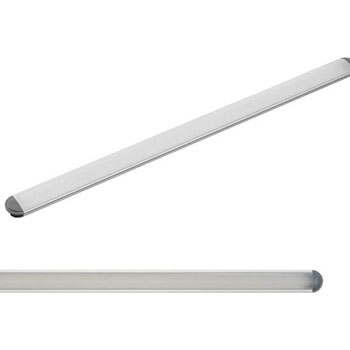

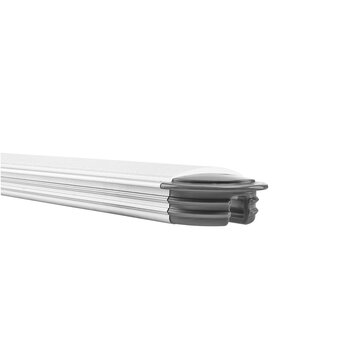

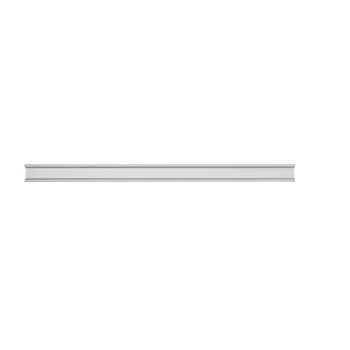

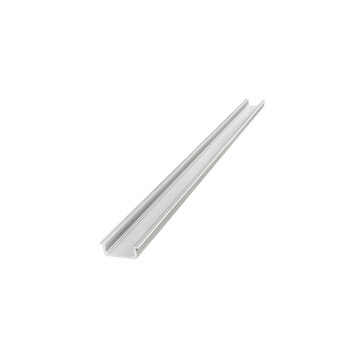

Satin Nickel Recessed
Lights, Diffusers & End Caps Sold Separately

Black Recessed

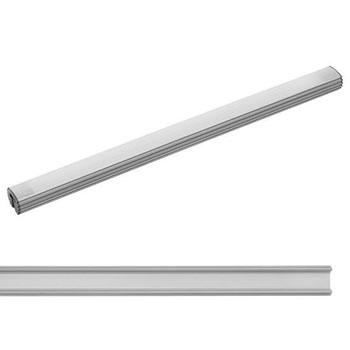

Satin Nickel Round
Lights, Diffusers & End Caps Sold Separately

Black Round

Satin Nickel Square
Lights, Diffusers & End Caps Sold Separately

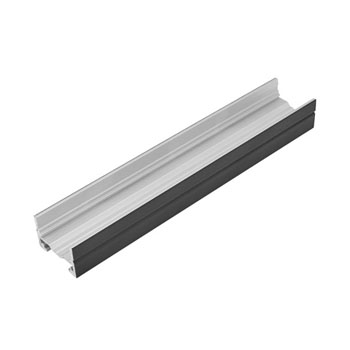

Black Square

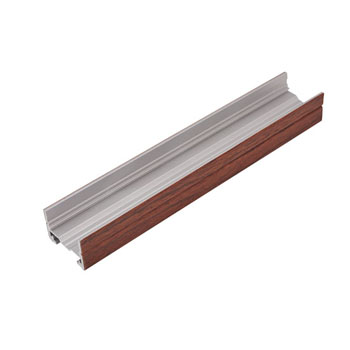

Dark Cherry Square

Maple Square

White Square

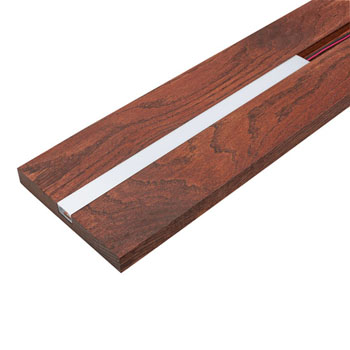

Flush Extrusion in Wood, Front View
Wood Not Included

Flush Extrusion in Wood, Top View
Wood & Leads Not Included

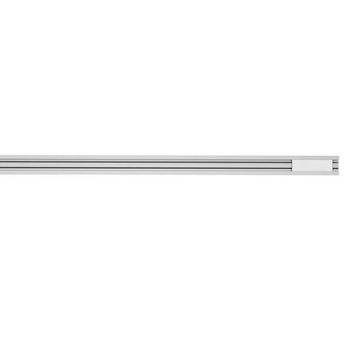

Satin Nickel With Magnet
Magnet Sold Separately

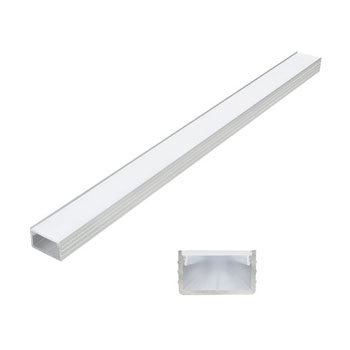

Flush Extrusion
Flush Extrusion includes Diffuser

Satin Clear with Milk Diffuser

Satin Clear with Milk Diffuser - Front

Satin Clear with Milk Diffuser - Angle

Satin Clear

Satin Clear - Top

Satin Clear - Closeup

Step 1: Choose Extrusion & Finish
Step 2: Choose FlexTape: Click here
Step 3: Order Required Transformer, Starter Cord & Diffuser: Click here
Step 4: Order Required Matching End Caps: Click here
Step 5: Order Optional Diode Blending Film, Mounting Clips or Magnet: Click here
Lifetime Guarantee

Features:

Infinex Extrusion LED Lighting System
Simple DIY assembly & installation
Different finishes available
Six unique profiles to choose from
Square:
- Surface mounted using Screws, U-Clips or Magnets; Sold Separately (One U-Clip/magnet is recommended for every 1' (.3 m) of extrusion - See Accessories)
- Easily slide magnets into channel on bottom of light
Curve:
- Surface mounted using Screws, U-Clips or Magnets; Sold Separately (One U-Clip/magnet is recommended for every 1' (.3 m) of extrusion - See Accessories)
- Easily slide magnets into channel on bottom of light
Round:
- U-Clip mounting allows fixture to be rotated in 15° increments either direction (30°, 15°, 0°, -15°, -30°); Sold Separately (One U-Clip is recommended for every 1' (.3 m) of extrusion - See Accessories)
Angle:
- For corner mounting with screws only
- Fixture directs light at 30° angle
Recessed:
- Grooved sides allow extrusion to pressure fit into place (With Endcap: Route a channel in wood 21/64" (8.33 mm depth minimum x .750" (19 mm) width and pressure fit this extrusion in place. Without Endcap: Route a channel in wood 9/32" (7.14 mm) depth minimum x .750" (19 mm) width and pressure fit this extrusion in place)
- Uses standard FlexTape Starter Lead
Flush:
- No end caps - this extrusion is meant for channels that go the entire width or height of the casework
- *Route a channel in wood 7/16” (11mm) x .750” width and pressure fit this extrusion in place
- Comes with milk diffuser (unattached)
- Uses standard FlexTape Starter Lead

1) Choose Your Style & Finish:
- Six unique profiles to choose from
  *Square
  *Curve
  *Round
  *Angle
  *Recessed
  *Flush
- Pick a finish for the diffuser (Custom finishes also available, call us at 1.800.667.8721 to order)
- Matching End Caps Sold Separately (See End Caps)
2) Choose Your FlexTape & Diffusers:
- FlexTape (See Available FlexTape Options)
  *1.5W FlexTape
  *3W FlexTape
  *4.4W FlexTape
  *1.5 or 3 Watts/Foot Equiline FlexTape
- Diffuser (See Diffuser)
  *Clear Diffuser
  *Frosted Diffuser
  *Milk Diffuser
  --Optional Diode Blending & Glare Reducing Film (to be used with clear diffuser only)
3) Cut to Size:
- Aluminum extrusions can be cut on a variety of equipment. For the best performance and longest life, use a saw blade designed for non-ferrous, thin stock, on your miter saw. It is also highly recommended to cut extrusion with diffuser securely attached via clamps, tape, stretch wrap etc. to prevent unwanted cracking of diffuser.
4) Assemble:

Dimensions:

(W = side to side) (D = front to back) (H = top to bottom)

72" (1.83m)

Specifications

Description:

Infinex is the innovative, patent-pending LED aluminum extrusion system by Tresco by Rev-A-Shelf. Gone are the days of set fixture sizes – simply choose your style, cut to desired length and assemble to create a customized LED fixture. Designed by Tresco's in-house engineers and made in the USA, Infinex carries a UL safety certification and is available in different profiles with an array of installation options.

Additional Information:
