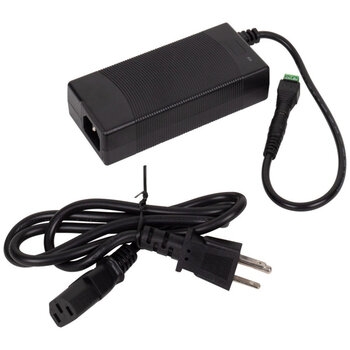

Task Lighting T-24V Series Plug-In Constant Voltage Power Supply with Cord in Multiple Watts Option, 24-Volt
24 Watts Product View
60 Watts Product View
96 Watts Product View
120 Watts Product View
No Hardwiring Required - Use an Existing Hidden Outlet
Features:
- Task Lighting T-24V Series Plug-In Constant Voltage Power Supply with Cord
- Available Options:
- Wattage: 24 Watt AC/DC 2 Prong, 60 Watt AC/DC 2 Prong, 96 Watt 24V AC/DC 3 Prong, 120 Watt AC/DC 3 Prong
- Primary Material: Plastic; Finish: Black
- Installation Location: Above Cabinet, Open Soffits, Interior Wall Cabinet, Base Cabinets, Open Coves, Any Available/Accessible Outlets (Do Not Install in an Attic)
- Female Barrel Connector (T-FBC) for 24V DC Connection
- Suitable For Dry Locations
- Compatible with All Task Lighting 24V Lighting, Dimming Products, Sensors, and Switches
- Compatible with Low-Voltage Dimming Devices
- Conforms to Class 2 NEC Requirements
- Rating: UL Listed to Keep Inspectors Satisfied; cULus Listed
- Choose the Best Kelvin Temperature Selection Guide - Click Here to View
- Accessories Selection Guide - Click Here to View Part 1, Click Here to View Part 2
Dimensions:
(W = side to side) (D = front to back) (H = top to bottom)
| Fixture Length | Input Voltage | Total Watts | AMPs | Type | Width | Depth | Height |
|---|---|---|---|---|---|---|---|
| TL-T-24V-24W-PI | 24V | 24 Watts | 1 AMPs | AC/DC 2 Prong Plug-In | 3-1/8" W | 1-3/4" D | 1-3/16" H |
| TL-T-24V-60W-PI | 24V | 60 Watts | 2 AMPs | AC/DC 2 Prong Plug-In | 4-3/8" W | 1-15/16" D | 1-3/16" H |
| TL-T-24V-96W-PI | 24V | 96 Watts | 4 AMPs | AC/DC 3 Prong Plug-In | 5" W | 2-1/4" D | 1-1/4" H |
| TL-T-24V-120W-PI | 24V | 120 Watts | 5 AMPs | AC/DC 3 Prong Plug-In | 6-5/16" W | 2-11/16" D | 1-1/4" H |
Description:
The Task Lighting T-24V Series Plug-In Constant Voltage Power Supply with Cord is designed to be used in a variety of installation locations, including open soffits, interior wall cabinets, base cabinets, and open coves. It's not just compatible with all Task Lighting 24V products—it's also compatible with low-voltage dimming devices and sensors! This power supply features a female barrel connector (T-FBC) for 24V DC connection and conforms to Class 2 NEC requirements. Best of all? It's UL Listed to keep inspectors satisfied AND cULus Listed to keep you happy.
Additional Information:
 | 24-Volt 24-Watt Detailed Specifications (PDF) |
| 24-Volt 60-Watt Detailed Specifications (PDF) |
| 24-Volt 120-Watt Detailed Specifications (PDF) |
| Best Kelvin Temperature Selection Guide (PDF) |
| LED Lighting - Output Information - For Any Application (PDF) |
| Accessories Selection Guide Part 1 (PDF) |
| Accessories Selection Guide Part 2 (PDF) |
