Task Lighting sempriaLED® R Series Model SR9 in Multiple Length LED Recessed Strip Light Fixture, Multiple Light Outputs, with Lighting Color Option

SempriaLED R Series Lifestyle 1

SempriaLED R Series Lifestyle 2

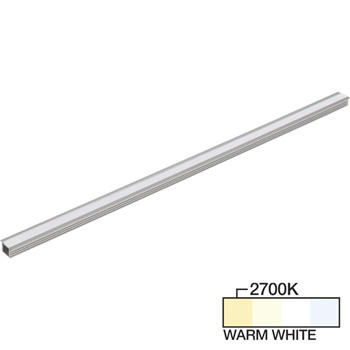

Task Lighting sempriaLED® R Series Model SR9 7-5/8" - 49-5/8" Length LED Recessed Strip Light Fixture, Medium - Higher Light Output, Warm White 2700k

LED Recessed Strip Light Fixture, Warm White 2700k

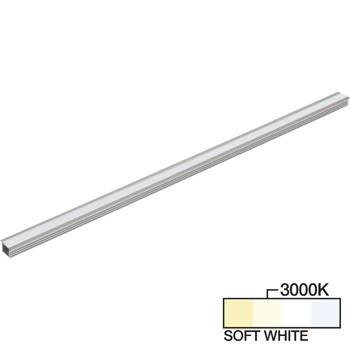

Task Lighting sempriaLED® R Series Model SR9 7-5/8" - 49-5/8" Length LED Recessed Strip Light Fixture, Medium - Higher Light Output, Soft White 3000k

LED Recessed Strip Light Fixture, Soft White 3000k

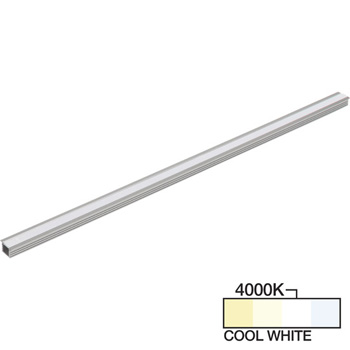

Task Lighting sempriaLED® R Series Model SR9 7-5/8" - 49-5/8" Length LED Recessed Strip Light Fixture, Medium - Higher Light Output, Cool White 4000k

LED Recessed Strip Light Fixture, Cool White 4000k

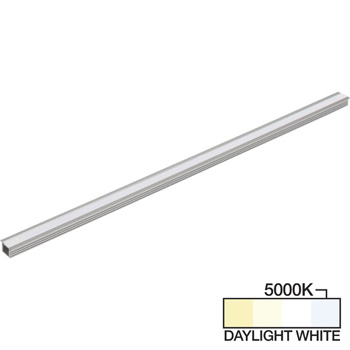

Task Lighting sempriaLED® R Series Model SR9 7-5/8" - 49-5/8" Length LED Recessed Strip Light Fixture, Medium - Higher Light Output, Daylight White 5000k

LED Recessed Strip Light Fixture, Daylight White 5000k

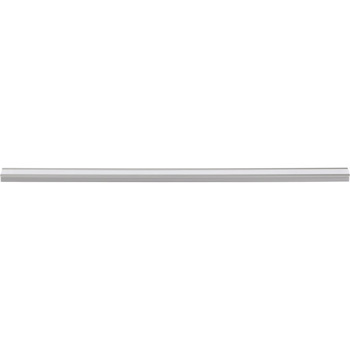

LED Recessed Strip Light Fixture, Warm White 2700k View 1

LED Recessed Strip Light Fixture, Soft White 3000k View 1

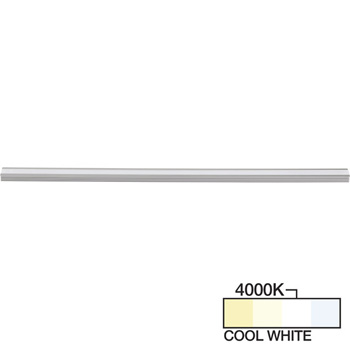

LED Recessed Strip Light Fixture, Cool White 4000k View 1

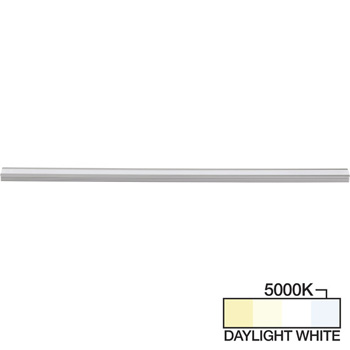

LED Recessed Strip Light Fixture, Daylight White 5000k View 1

SempriaLED Gallery 1

SempriaLED Gallery 2

SempriaLED Gallery 3

SempriaLED Gallery 4

SempriaLED Gallery 5

SempriaLED Gallery 6

SempriaLED Gallery 7

SempriaLED Gallery 8

SempriaLED Gallery 9

SempriaLED Gallery 10

SempriaLED Gallery 11

SempriaLED Gallery 12

SempriaLED Gallery 13

SempriaLED Gallery 14

SempriaLED Gallery 15

SempriaLED Gallery 16

Step 1: Choose Kelvin Temperature Color
Step 2: Choose Required installation Solid Wire Click Here
Step 3: Choose Required Power Supply Click Here
Step 4: Choose Optional Accessories Click Here
Step 5: Choose Additional Accessories Controllers and Dimmers Click Here

Shop for similar items:

illumaLED™ Radiance Series 16' Foot Tape Light with Touch Dimmer Kit, 1 Zone, 1 Area, Soft White 3000K, 197"...

$158.03

LOOX5 LED3042 Series 4000K Cool White LED Flexible Strip Light, Monochrome, 24 Volts Direct Current, 4.8 Watts Per...

$94.25

24VDC 8W/Sq Ft. 1.5 Sq. Ft. Snip LED Panel, 5000K, 9" W x 24" D x 1/16" H

$100.10

illumaLED™ Vivid Series 32' Tape Light Duo Wireless Contractor Kit, 2-Zone, 2-Area, High Light Output, Warm...

$600.82

Vivid Series 24-3/8" Length 12V Standard Output Linear Fixture, Fits 27" Wall Cabinet, 7W, 007 Profile, Single-White,...

$40.46

TandemLED Series 44-7/16" Length 12V Standard Output Linear Fixture, Fits 48" Wall Cabinet, 12W, 003 Profile,...

$82.96

44-1/16" Length 24V High Output Linear Fixture, 1175 Lumens, Fits 48" Wall Cabinet, 14 W, 002XL Profile, Single-White,...

$77.48

Radiance Series 14-1/2" Length 24V Accent Output Linear Fixture, Fits 18" Wall Cabinet, 3W, 007 Profile, Single-White,...

$26.20

Radiance Series 32-1/4" Length 24V Accent Output Linear Fixture, Fits 36" Wall Cabinet, 5W, 003 Profile, Single-White,...

$45.34

Vivid Series 12-9/16" Length 24V Standard Output Linear Fixture, Fits 15" Wall Cabinet, 4W, 007 Profile, Single-White,...

$24.26

Vivid Series 36-3/16" Length 12V Standard Output Linear Fixture, Fits 39" Wall Cabinet, 10W, 003 Profile,...

$54.76

TandemLED 45" Length 24-Volt High Output Linear Fixture, Fits 48" Wall Cabinet, 14 W, 003 Profile, Tunable-White...

$99.57

20-7/16" Length 24-Volt High Output Linear Fixture, Fits 24" Wall Cabinet, 7 Watts, Flat 007 Profile, Single-White,...

$41.50

Elli 2 35" Length LED Lighting Track, 4800K, Aluminum

$138.41

LS6PX Series 38-1/8" Length 24V Higher Output Linear Fixture, Fits 42" Wall Cabinet, 18W, 002XL Profile, Single-White,...

$81.61

Vivid Series 8-5/8" Length 12V Standard Output Linear Fixture, Fits 12" Wall Cabinet, 3W, 003 Profile, Single-White,...

$20.83

sempriaLED® S Series Model SS9E 36-3/4" LED Angled Strip Light Fixture with Shield, Medium Light Output, Cool...

$108.77

LOOX5 LED3043 Series 3000K Warm White LED Silicone Flexible Strip Light, Monochrome, 24 Volts Direct Current, 4.8...

$292.99

TandemLED Series 32-3/4" Length 24V High Output Linear Fixture, Fits 36" Wall Cabinet, 10W, 007 Profile, Tunable-White...

$75.15

Radiance Series 6-5/8" Length 24V Accent Output Linear Fixture, Fits 9" Wall Cabinet, 2W, 007 Profile, Single-White,...

$17.71

illumaLED TandemLED 16 ft Roll 24-Volt Tunable-White Flexible Tape Lighting, 280 Lumens Per Foot, 2700K - 5000K

$175.25

LOOX5 LED3051 Series 4000K Cool White LED Flexible Strip Light, Monochrome, 24 Volts Direct Current, 14.4 Watts Per...

$5196.44

illumaLED™ Radiance Series 16' Foot Tape Light Uno Wireless Kit, 1-Zone, 1-Area, Medium Light Output, Warm White...

$277.23

Radiance Series 38-1/8" Length 24V Accent Output Linear Fixture, Fits 42" Wall Cabinet, 6W, 003 Profile, Single-White,...

$50.17

LOOX5 LED2070 Series 2700K Warm White - 5000K Cool White Multi-White LED Flexible Strip Light, 12 Volts Direct...

$414.19

sempriaLED® SG9 Series 30" LED Strip Light Fixture, Higher Light Output, Black Mount, Soft White 3000k, 30-1/8"...

$194.99

36-3/16" Length 24-Volt High Output Linear Fixture, 965 Lumens, Fits 39" Wall Cabinet, 11 W, 003 Profile,...

$65.71

14-1/2" Length 24-Volt High Output Linear Fixture, Fits 18" Wall Cabinet, 5 Watts, Flat 007 Profile, Single-White,...

$34.41

Vivid Series 36-3/16" Length 12V Standard Output Linear Fixture, Fits 39" Wall Cabinet, 10W, 007 Profile,...

$54.76

sempriaLED® S Series Model SS9E 30-3/4" LED Angled Strip Light Fixture with Shield, Medium Light Output, Daylight...

$96.20

Features:

Task Lighting sempriaLED® R Series Model SR9 LED Recessed Strip Light Fixture
Applications: Frameless Cabinets, Fixed or Floating Shelves and Closets
Required Component: 12V DC Power Supply Plug-in Play or Hardwired (Sold Separately)
Required Installation Component: 20/2 AWG Solid Wire (Sold Separately)
Kelvin Temperature Options: 2700k Warm White, 3000k Soft White, 4000k Cool White or 5000k Daylight White
Construction Material: RPVC (Mount), Extruded Aluminum (Heatsink), and IR Acrylic (Lens)
WireWay Mounting Bracket Colors: Black, Grey or White
Simple to Install Fully Assembled Fixture with Frosted, Light Diffusing Lens
90 CRI (Color Rendering Index -True Color)
50,000 Hour LED Life at 70% Lumen Maintenance
Higher Light Output 6 Watts Per Foot, High Light Output 4 Watts Per Foot, or Medium Light Output 2 Watts Per Foot Option
Available in Multiple Lengths from 8" to 50" Long
High LED Diode Density Board Creates "No Dot" Effect
No Ultraviolet (UV) or Infrared (IR)
Simple Mounting Application: Double Stick Tape (Not Included), Mounting Screws (Included)
Concealed Wire Management
5/8" Router Recommended for Install
Designed for Recessed Flush Mounting
Each LED Under goes a 4-Hour Burn in Test
LED Beam Angle: 120° Degrees
Environment: Dry and Location: Indoor
Optional Accessories: WireWay, Switches and Dimmers (Sold Separately)
cULus Listed
5-Year Limited Warranty
Choose the Best Kelvin Temperature Selection Guide - Click Here to View
Accessories Selection Guide - Click Here to View

Dimensions:

(W = side to side) (D = front to back) (H = top to bottom)

Higher Light Output: 6 Watts Per Foot

Model	Overall Dimensions	Watts Per Fixture	Lumens Based on 3000k (Apprioximately Per Fixture)	Available Kelvin Temperature
SR9H-8ND3-F	7-5/8" Length x 5/8" W x 1/2" H	3 Watts	300	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9H-14ND6-F	13-5/8" Length x 5/8" W x 1/2" H	6 Watts	600	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9H-20ND9-F	19-5/8" Length x 5/8" W x 1/2" H	9 Watts	900	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9H-26ND12-F	25-5/8" Length x 5/8" W x 1/2" H	12 Watts	1200	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9H-32ND15-F	31-5/8" Length x 5/8" W x 1/2" H	15 Watts	1500	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9H-38ND18-F	37-5/8" Length x 5/8" W x 1/2" H	18 Watts	1600	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9H-44ND21-F	43-5/8" Length x 5/8" W x 1/2" H	21 Watts	2100	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9H-50ND24-F	49-5/8" Length x 5/8" W x 1/2" H	24 Watts	2400	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k

High Light Output: 4 Watts Per Foot

Model	Overall Dimensions	Watts Per Fixture	Lumens Based on 3000k (Apprioximately Per Fixture)	Available Kelvin Temperature
SR9Q-8ND2-F	7-5/8" Length x 5/8" W x 1/2" H	2 Watts	200	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9Q-14ND4-F	13-5/8" Length x 5/8" W x 1/2" H	4 Watts	400	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9Q-20ND6-F	19-5/8" Length x 5/8" W x 1/2" H	6 Watts	600	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9Q-26ND8-F	25-5/8" Length x 5/8" W x 1/2" H	8 Watts	800	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9Q-32ND10-F	31-5/8" Length x 5/8" W x 1/2" H	10 Watts	1000	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9Q-38ND12-F	37-5/8" Length x 5/8" W x 1/2" H	12 Watts	1200	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9Q-44ND14-F	43-5/8" Length x 5/8" W x 1/2" H	14 Watts	1400	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9Q-50ND16-F	49-5/8" Length x 5/8" W x 1/2" H	16 Watts	1600	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k

Medium Light Output: 2 Watts Per Foot

Model	Overall Dimensions	Watts Per Fixture	Lumens Based on 3000k (Apprioximately Per Fixture)	Available Kelvin Temperature
SR9E-8ND1-F	7-5/8" Length x 5/8" W x 1/2" H	1 Watts	100	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9E-14ND2-F	13-5/8" Length x 5/8" W x 1/2" H	2 Watts	200	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9E-20ND3-F	19-5/8" Length x 5/8" W x 1/2" H	3 Watts	300	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9E-26ND4-F	25-5/8" Length x 5/8" W x 1/2" H	4 Watts	400	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9E-32ND5-F	31-5/8" Length x 5/8" W x 1/2" H	5 Watts	500	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9E-38ND6-F	37-5/8" Length x 5/8" W x 1/2" H	6 Watts	600	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9E-44ND7-F	43-5/8" Length x 5/8" W x 1/2" H	7 Watts	700	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k
SR9E-50ND8-F	49-5/8" Length x 5/8" W x 1/2" H	8 Watts	800	Warm White 2700k, Soft White 3000k, Cool White 4000k or Daylight White 5000k

Description:

Give additional distinction and unique style to any room in your home with the sempriaLED® R Series Model SR9 LED Recessed Strip Light Fixture. Best suited applications are frameless cabinets, fixed or floating shelves and closets.
