Task Lighting Tandem RM Series Lighted Power Strip, Remote Power Supply, 2700K-5000K Tunable-White, Available in Multiple Lengths, Receptacles and Housing Finishes
10-1/2" Black Receptacles/Black

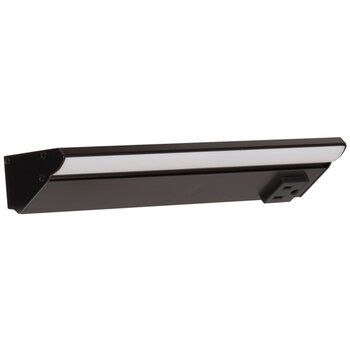

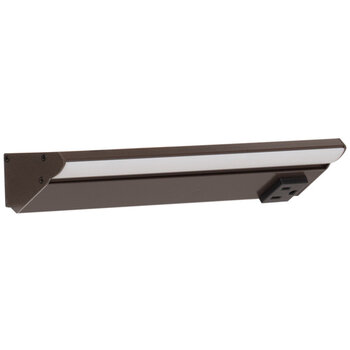

10-1/2" Black Receptacles/Bronze
2700K Color Temperature
3000K Color Temperature
4000K Color Temperature
5000K Color Temperature

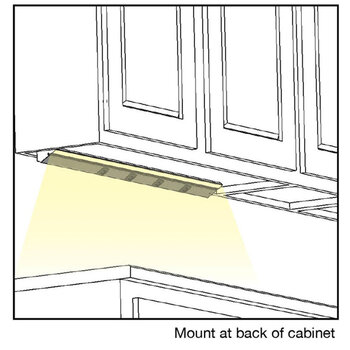

Mounting View

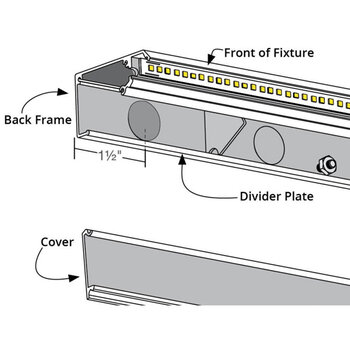

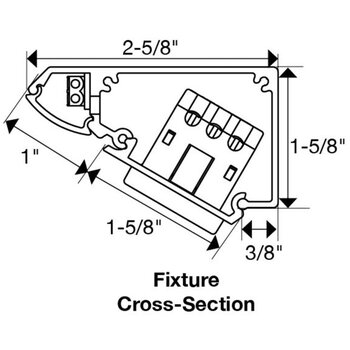

Fixture Diagram
Dimensions

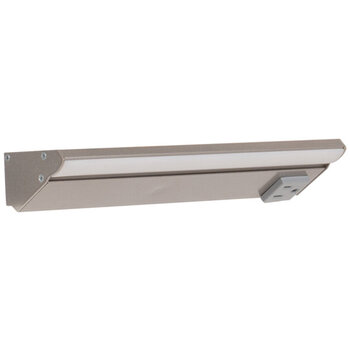

10-1/2" Grey Receptacles/Satin Nickel

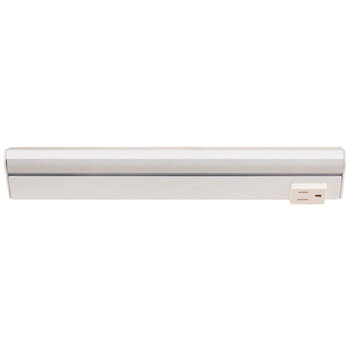

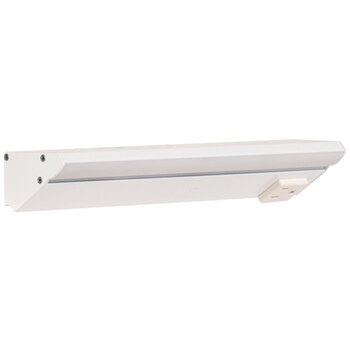

10-1/2" White Receptacles/White

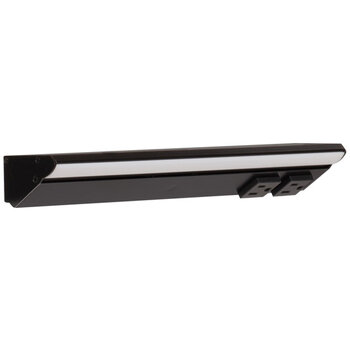

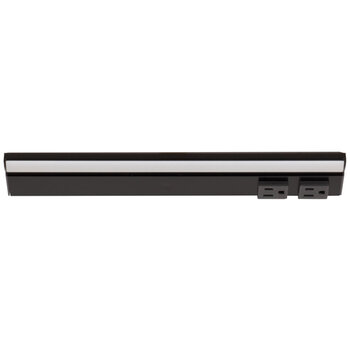

12-1/2" Black Receptacles/Black

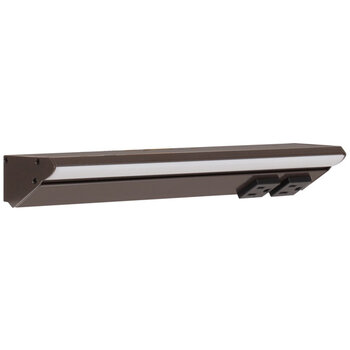

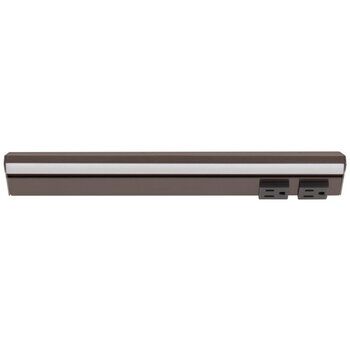

12-1/2" Black Receptacles/Bronze

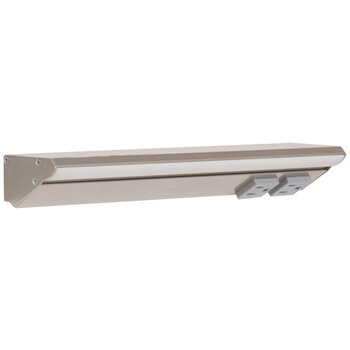

12-1/2" Grey Receptacles/Satin Nickel

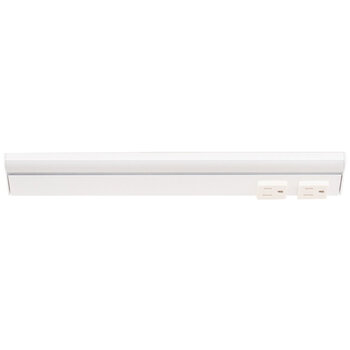

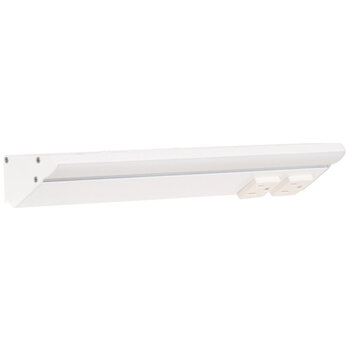

12-1/2" White Receptacles/White

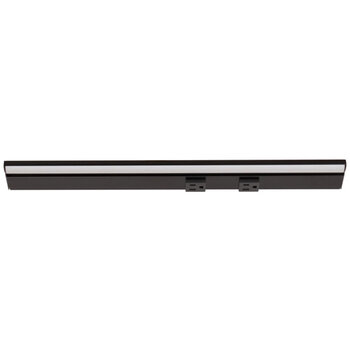

18-1/2" Black Receptacles/Black

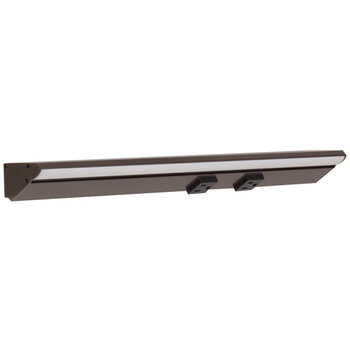

18-1/2" Black Receptacles/Bronze

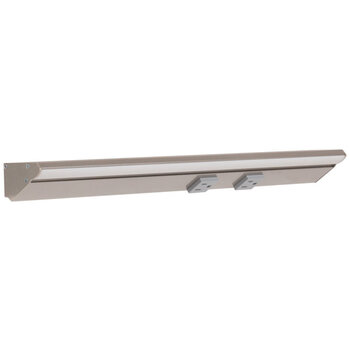

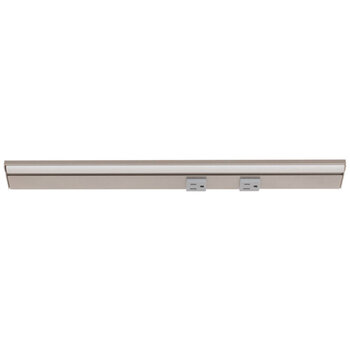

18-1/2" Grey Receptacles/Satin Nickel

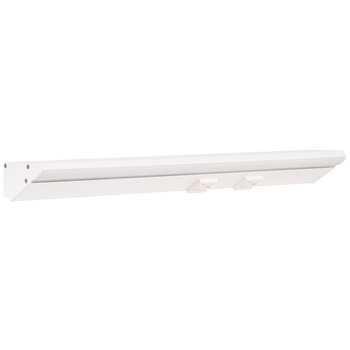

18-1/2" White Receptacles/White

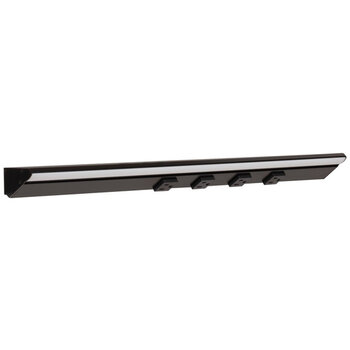

24-1/2" Black Receptacles/Black

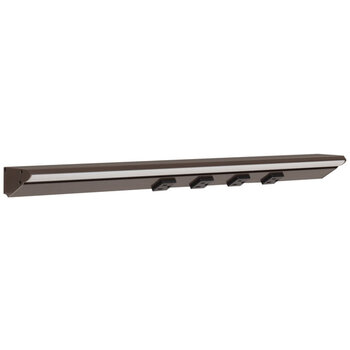

24-1/2" Black Receptacles/Bronze
24-1/2" Grey Receptacles/Satin Nickel

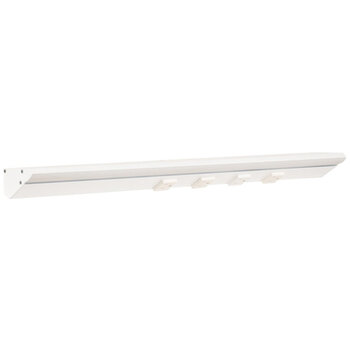

24-1/2" White Receptacles/White

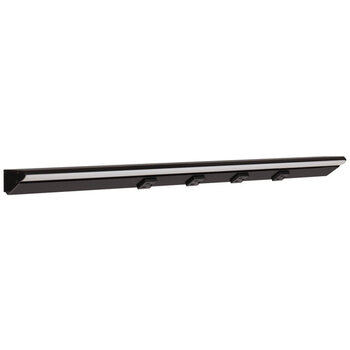

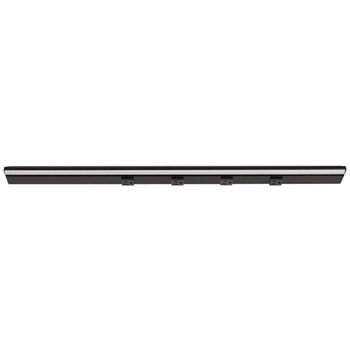

30-1/2" Black Receptacles/Black

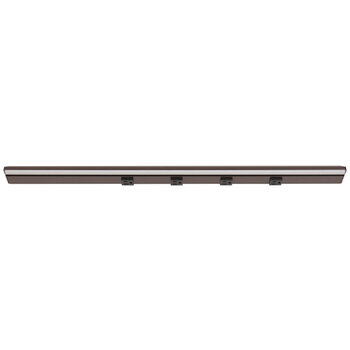

30-1/2" Black Receptacles/Bronze

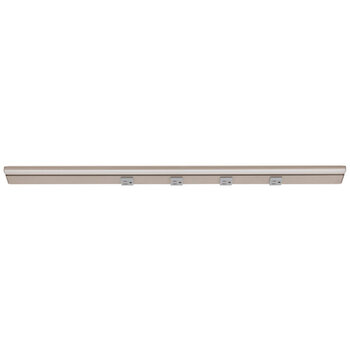

30-1/2" Grey Receptacles/Satin Nickel

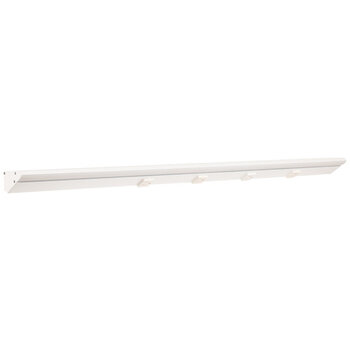

30-1/2" White Receptacles/White

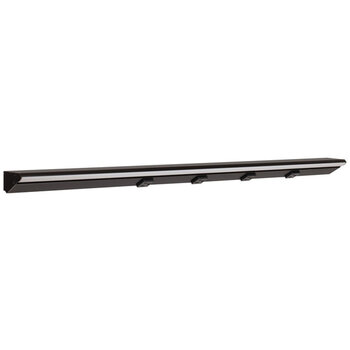

36-1/2" Black Receptacles/Black

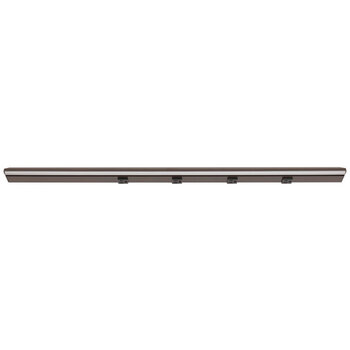

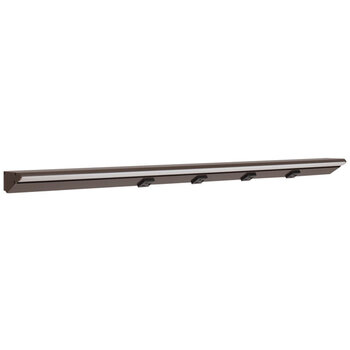

36-1/2" Black Receptacles/Bronze

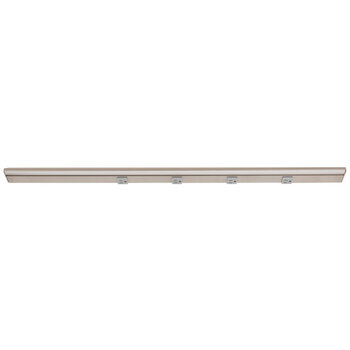

36-1/2" Grey Receptacles/Satin Nickel

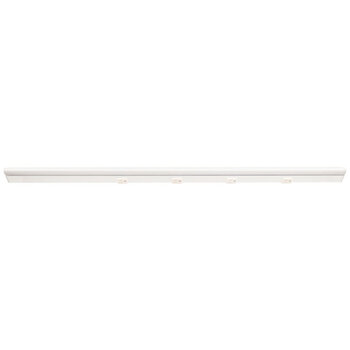

36-1/2" White Receptacles/White

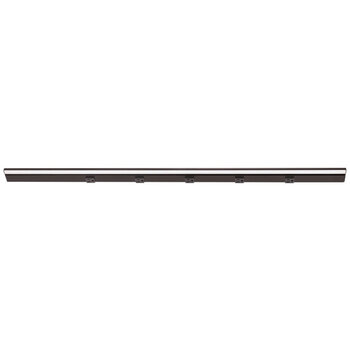

42-1/2" Black Receptacles/Black

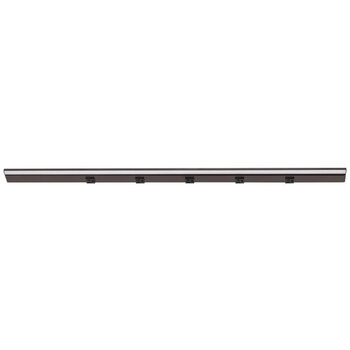

42-1/2" Black Receptacles/Bronze

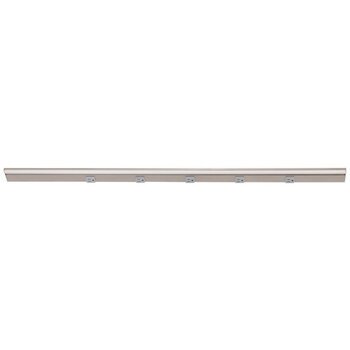

42-1/2" Grey Receptacles/Satin Nickel

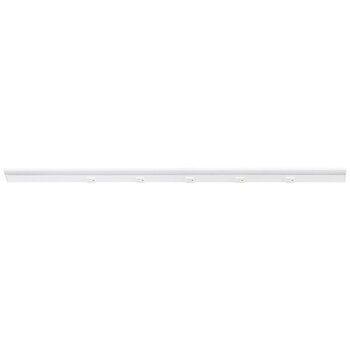

42-1/2" White Receptacles/White

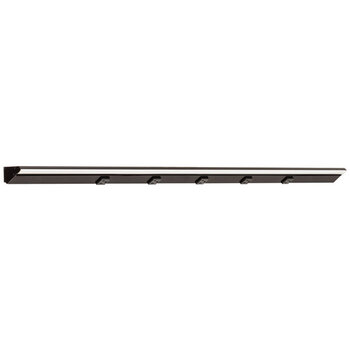

48-1/2" Black Receptacles/Black

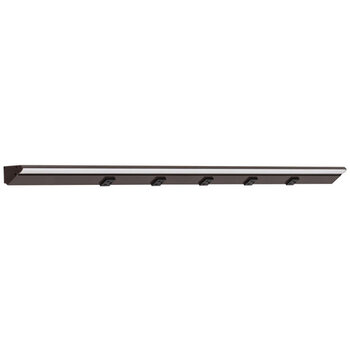

48-1/2" Black Receptacles/Bronze

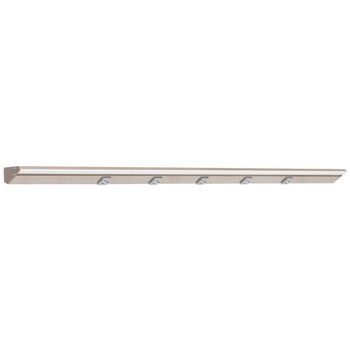

48-1/2" Grey Receptacles/Satin Nickel

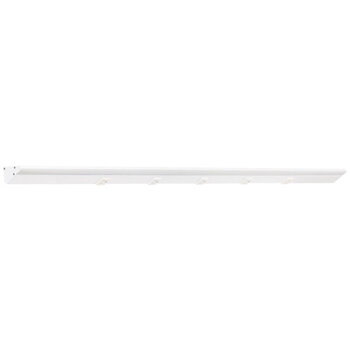

48-1/2" White Receptacles/White

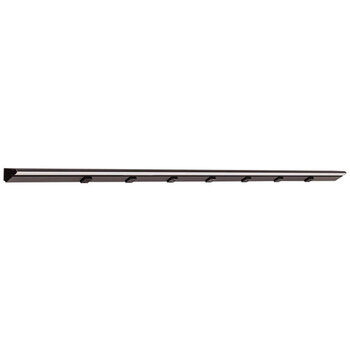

60-1/2" Black Receptacles/Black

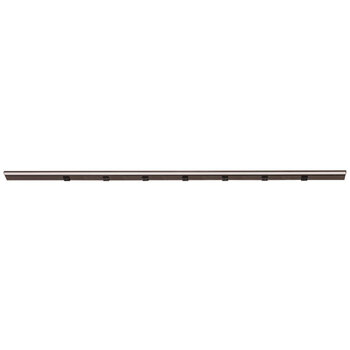

60-1/2" Black Receptacles/Bronze

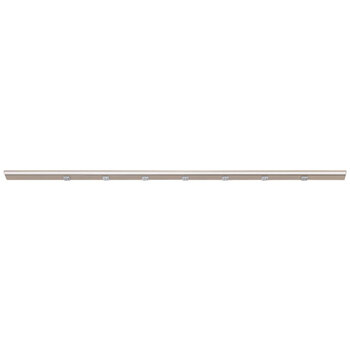

60-1/2" Grey Receptacles/Satin Nickel

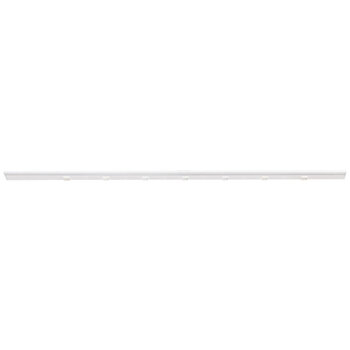

60-1/2" White Receptacles/White

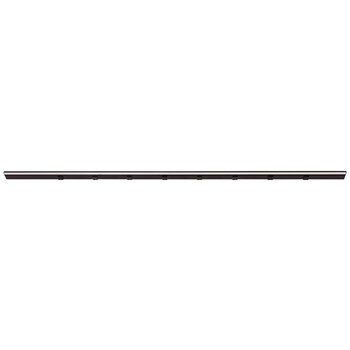

72-1/2" 3Black Receptacles/Black
72-1/2" 3Black Receptacles/Bronze
72-1/2" 3Grey Receptacles/Satin Nickel
72-1/2" 3White Receptacles/White
10-1/2" Black Receptacles/Black Front View

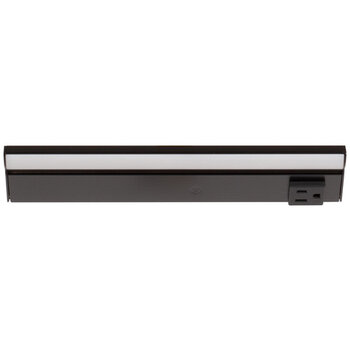

10-1/2" Black Receptacles/Bronze Front View
10-1/2" Grey Receptacles/Satin Nickel Front View
10-1/2" White Receptacles/White Front View
12-1/2" Black Receptacles/Black Front View
12-1/2" Black Receptacles/Bronze Front View

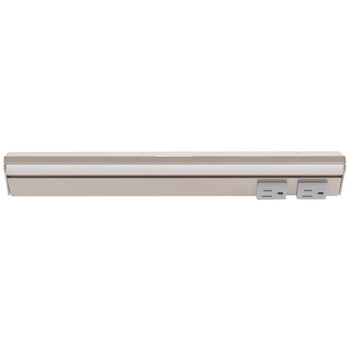

12-1/2" Grey Receptacles/Satin Nickel Front View
12-1/2" White Receptacles/White Front View
18-1/2" Black Receptacles/Black Front View

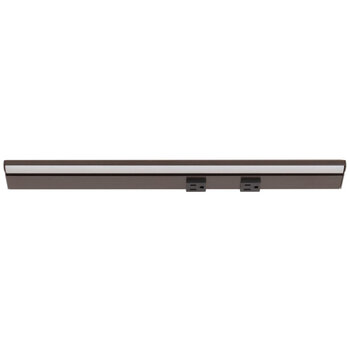

18-1/2" Black Receptacles/Bronze Front View
18-1/2" Grey Receptacles/Satin Nickel Front View

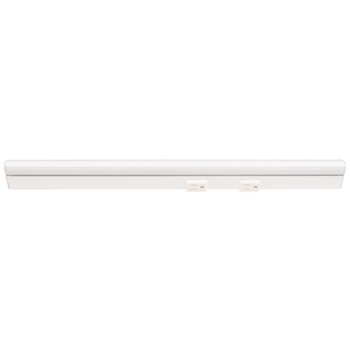

18-1/2" White Receptacles/White Front View
24-1/2" Black Receptacles/Black Front View

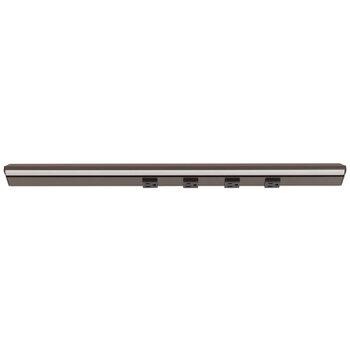

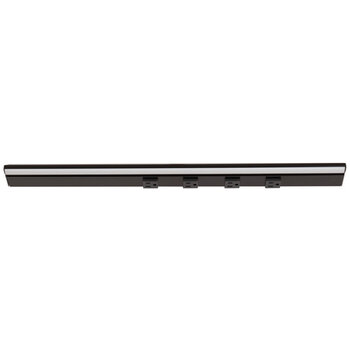

24-1/2" Black Receptacles/Bronze Front View

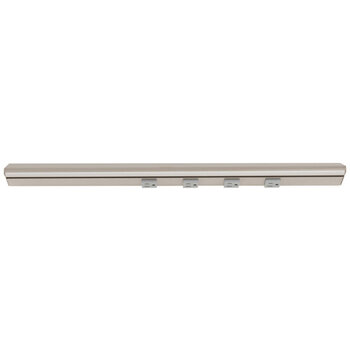

24-1/2" Grey Receptacles/Satin Nickel Front View

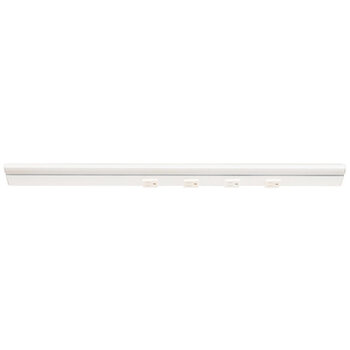

24-1/2" White Receptacles/White Front View
30-1/2" Black Receptacles/Black Front View
30-1/2" Black Receptacles/Bronze Front View
30-1/2" Grey Receptacles/Satin Nickel Front View
30-1/2" White Receptacles/White Front View

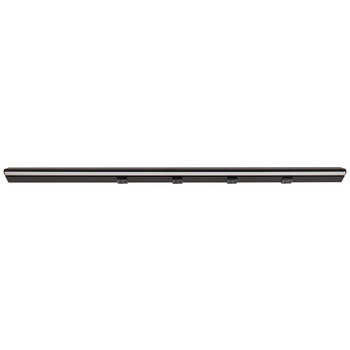

36-1/2" Black Receptacles/Black Front View
36-1/2" Black Receptacles/Bronze Front View
36-1/2" Grey Receptacles/Satin Nickel Front View
36-1/2" White Receptacles/White Front View
42-1/2" Black Receptacles/Black Front View
42-1/2" Black Receptacles/Bronze Front View
42-1/2" Grey Receptacles/Satin Nickel Front View
42-1/2" White Receptacles/White Front View
48-1/2" Black Receptacles/Black Front View
48-1/2" Black Receptacles/Bronze Front View

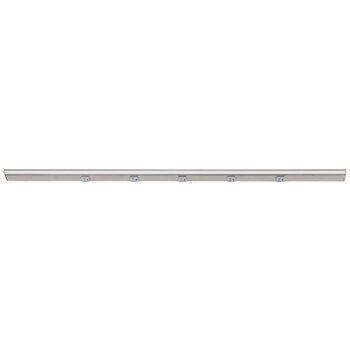

48-1/2" Grey Receptacles/Satin Nickel Front View

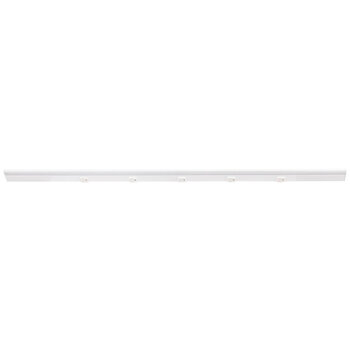

48-1/2" White Receptacles/White Front View
60-1/2" Black Receptacles/Black Front View
60-1/2" Black Receptacles/Bronze Front View

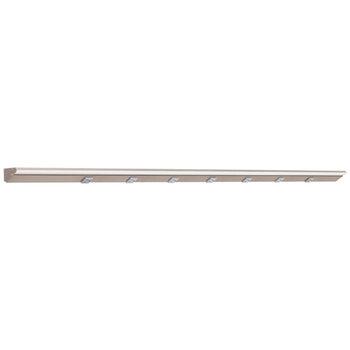

60-1/2" Grey Receptacles/Satin Nickel Front View

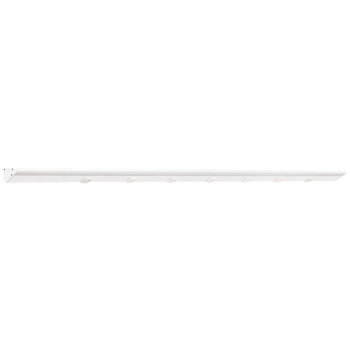

60-1/2" White Receptacles/White Front View
72-1/2" Black Receptacles/Black Front View

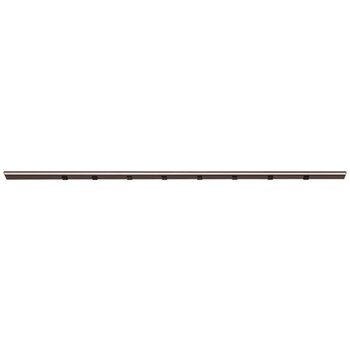

72-1/2" Black Receptacles/Bronze Front View

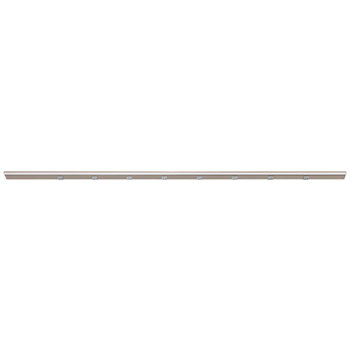

72-1/2" Grey Receptacles/Satin Nickel Front View

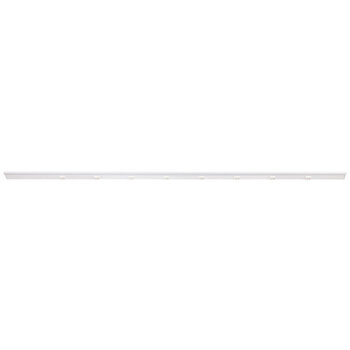

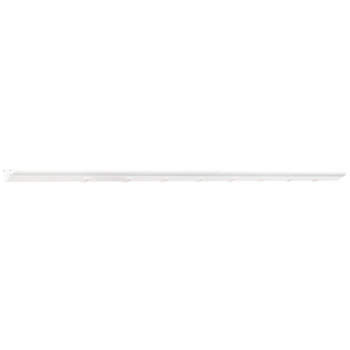

72-1/2" White Receptacles/White Front View

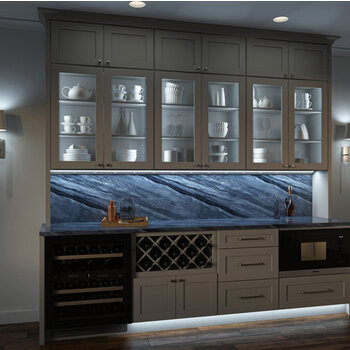

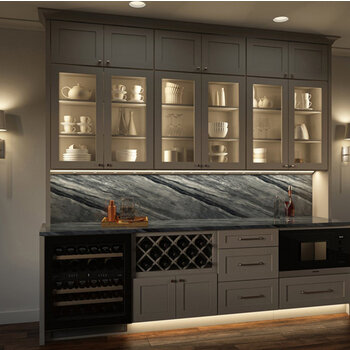

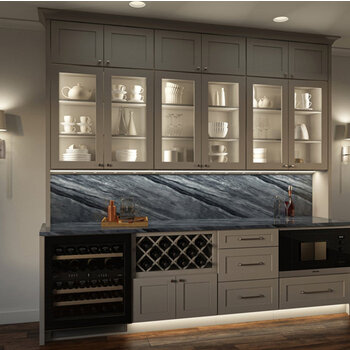

Applications: Under Cabinets, Offices and Computer Labs, Shops and Garages
Step 1: Choose Length
Step 2: Choose Required Power Supply Click Here or
Step 3: Choose Required Hardwired Installation Wire Click Here
Step 4: Choose Optional Accessories Click Here
Step 1: Choose Length
Step 2: Choose Required Power Supply Click Here or
Step 3: Choose Required Hardwired Installation Wire Click Here
Step 4: Choose Optional Accessories Click Here
Features:
- Task Lighting Tandem RM Series Lighted Power Strip
- Available Options:
- Power Strip Length: 10-1/2'' Long, 12-1/2'' Long, 18-1/2'' Long, 24-1/2'' Long, 30-1/2'' Long, 36-1/2'' Long, 42-1/2'' Long, 48-1/2'' Long, 60-1/2'' Long, 72-1/2'' Long
- Receptacles and Housing Finish: Black Receptacles / Black Housing, Black Receptacles / Bronze Housing, Grey Receptacles / Satin Nickel Housing, White Receptacles / White Housing
- Applications: Under Cabinets, Offices and Computer Labs, Shops and Garages
- Required Component: 24V Power Supply or Hardwired 20/2 AWG Stranded or Solid Wire for LED Lights (Sold Separately) Click Here
- Kelvin Color Temperature: Tunable CCT from Warm White 2700K to Daylight White 5000K and All Shades of White in Between at Any Brightness Level
- Construction Material: Powder Coated Aluminum, IR Acrylic (Lens); Low Profile: 1-5/8"
- Input Voltage: 12V (Lighting; 120V (Receptacle); Diodes: 600 Per Foot; 20 AMPs
- Remote Power Supply (Lighting): Reduce Total Cost by Powering Multiple Fixtures with One Power Supply (Sold Separately)
- LED Type: SMD2835
- Color Rendering Index: 90 CRI+
- Rated Life: 50,000 Hours LED Life at 70% Lumen Maintenance
- Max Run: Recommended Maximum Run Length is 16 Ft (5M) for Single-Side Powering
- Environmental Rating: IP20 (Dry/Indoor Location)
- Dimmable: Yes, 5% - 100%; with Compatible Dimmer (Sold Separately)
- Dimming Requires a Dedicated Circuit for the Lighting - Do Not Wire to Dim Receptacles
- No Ultraviolet (UV) or Infrared (IR)
- LED Beam Angle: 120° Degrees
- LED Spacing: Approximately 1/4"
- Wiring: 12 Gauge Romex for Receptacles; 18-20 Gauge Wire for LEDs
- Operating Temperature: -4°F to 140°F (-20°C to 60°C)
- Mounting Application: Wood Screws and Wall Anchors (Included)
- UL Listed; cULus Listed
- Compatible with WAV Smart Control Devices (Sold Separately)
- Choose the Best Kelvin Temperature Selection Guide - Click Here to View
- Accessories Selection Guide - Click Here to View Part 1, Click Here to View Part 2
Dimensions:
(W = side to side) (D = front to back) (H = top to bottom)
| Length | Input Voltage | Total Watts | Total Lumens | Kelvin Color Temperature | Number of Receptacles | Depth | Height |
|---|---|---|---|---|---|---|---|
| 10-1/2" Length | 12V DC (Lighting); 120V (Receptacle) | 5 Watts | 500 | Tunable-White 2700K - 5000K | 1 | 2-5/8" D | 1-5/8" H |
| 12-1/2" Length | 12V DC (Lighting); 120V (Receptacle) | 6 Watts | 600 | Tunable-White 2700K - 5000K | 2 | 2-5/8" D | 1-5/8" H |
| 18-1/2" Length | 12V DC (Lighting); 120V (Receptacle) | 9 Watts | 900 | Tunable-White 2700K - 5000K | 2 | 2-5/8" D | 1-5/8" H |
| 24-1/2" Length | 12V DC (Lighting); 120V (Receptacle) | 12 Watts | 1200 | Tunable-White 2700K - 5000K | 4 | 2-5/8" D | 1-5/8" H |
| 30-1/2" Length | 12V DC (Lighting); 120V (Receptacle) | 15 Watts | 1500 | Tunable-White 2700K - 5000K | 4 | 2-5/8" D | 1-5/8" H |
| 36-1/2" Length | 12V DC (Lighting); 120V (Receptacle) | 18 Watts | 1800 | Tunable-White 2700K - 5000K | 4 | 2-5/8" D | 1-5/8" H |
| 42-1/2" Length | 12V DC (Lighting); 120V (Receptacle) | 21 Watts | 2100 | Tunable-White 2700K - 5000K | 5 | 2-5/8" D | 1-5/8" H |
| 48-1/2" Length | 12V DC (Lighting); 120V (Receptacle) | 24 Watts | 2400 | Tunable-White 2700K - 5000K | 5 | 2-5/8" D | 1-5/8" H |
| 60-1/2" Length | 12V DC (Lighting); 120V (Receptacle) | 30 Watts | 3000 | Tunable-White 2700K - 5000K | 7 | 2-5/8" D | 1-5/8" H |
| 72-1/2" Length | 12V DC (Lighting); 120V (Receptacle) | 36 Watts | 3600 | Tunable-White 2700K - 5000K | 8 | 2-5/8" D | 1-5/8" H |
Description:
The Task Lighting Tandem RM Series Lighted Power Strip is a versatile, space-saving solution designed for under cabinets, offices, computer labs, shops, and garages. Combining power and lighting in a sleek, low-profile (1-5/8") powder-coated aluminum housing, it delivers both illumination and electrical access in one streamlined unit. Its tunable LED lighting ranges from warm white (2700K) to daylight white (5000K), allowing users to customize the ambiance at any brightness level. With 600 diodes per foot and a 90+ CRI, this power strip ensures high-quality, uniform lighting. It operates on a 12V LED circuit while providing 120V power through its receptacles, supporting up to 20 AMPs. Designed for efficiency, it can be remotely powered by a single 24V power supply (sold separately) to reduce installation costs. Dimmable from 5% to 100% with a compatible dimmer (dedicated circuit required), it provides smooth, flicker-free control. The unit is rated for dry, indoor locations (IP20) and offers a 50,000-hour lifespan. Installation is straightforward with included wood screws and wall anchors. Fully UL and cULus listed, this smart control-compatible power strip is an ideal combination of lighting and power accessibility for modern workspaces.
Additional Information:
 | Detailed Specification (PDF) |
| Best Kelvin Temperature Selection Guide (PDF) |
| LED Lighting - Output Information - For Any Application (PDF) |
| Accessories Selection Guide Part 1 (PDF) |
| Accessories Selection Guide Part 2 (PDF) |
